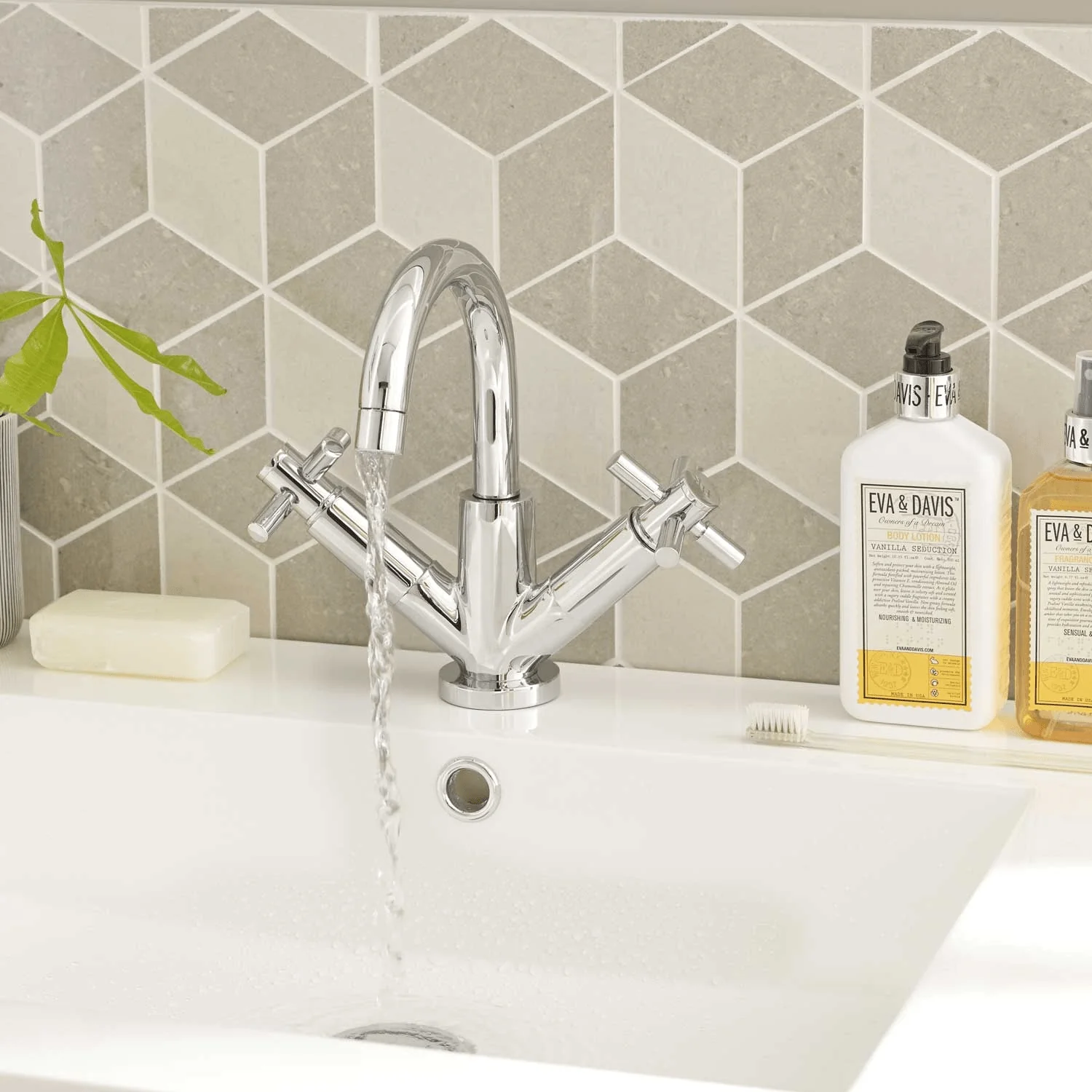

Hudson Reed Tec Crosshead Mono Basin Mixer - Chrome

Part of the Hudson Reed Tec Crosshead range, built for daily use, this Hudson Reed basin mixer combines coordinated bathroom solutions with reliable water delivery. It offers WRAS-approved fittings for safe, regulation-compliant water delivery, complemented by solid brass body for long-lasting, dependable use. Well suited to main bathrooms, en-suites, and cloakrooms.

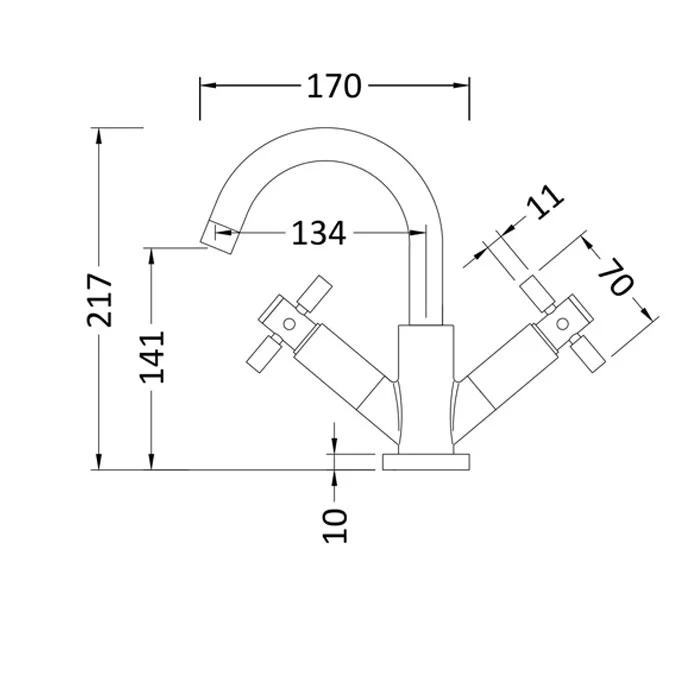

Technical Specification

Height: 217 mm

Weight: 2.56 kg

Width: 230 mm

Depth: 175 mm

Length:

Material: Brass

Waste: Yes

Mount Type: Deck

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: Yes

WRAS Approval Number: 2204064

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 3

Flow Rate at 0.5 Bar (L/min): 16

Flow Rate at 1 Bar (L/min): 22

Flow Rate at 2 Bar (L/min): 31

Flow Rate at 3 Bar (L/min): 38

Tap Holes Required: 1

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
