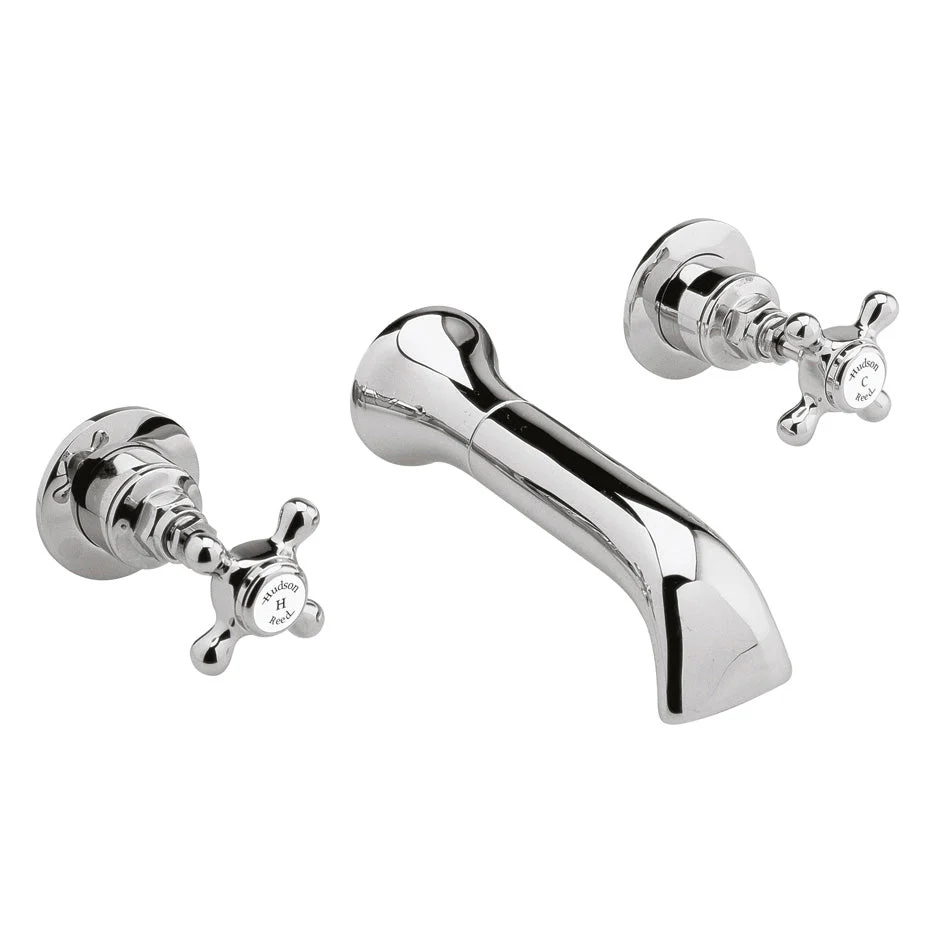

Hudson Reed White Topaz With Crosshead Wall Mounted Bath Spout - Chrome / White - BC309HX

Luxury crosshead handle with coloured indices. Traditional hexagonal collar. Suitable for low pressure systems. Ceramic disc technology for long life and smooth operation. High quality brass internals with luxury chrome finish.

Technical Specification

Height: 69 mm

Weight: 2.3 kg

Depth: 218 mm

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1 Bar

Valve/Cartirdge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 9.6000

Flow Rate at 0.5 Bar (L/min): 20.0000

Flow Rate at 1 Bar (L/min): 28.0000

Flow Rate at 2 Bar (L/min): 39.5000

Flow Rate at 3 Bar (L/min): 46.8000

Tap Holes Required: 3

Tap Spout Projection: 192.0000 mm

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
