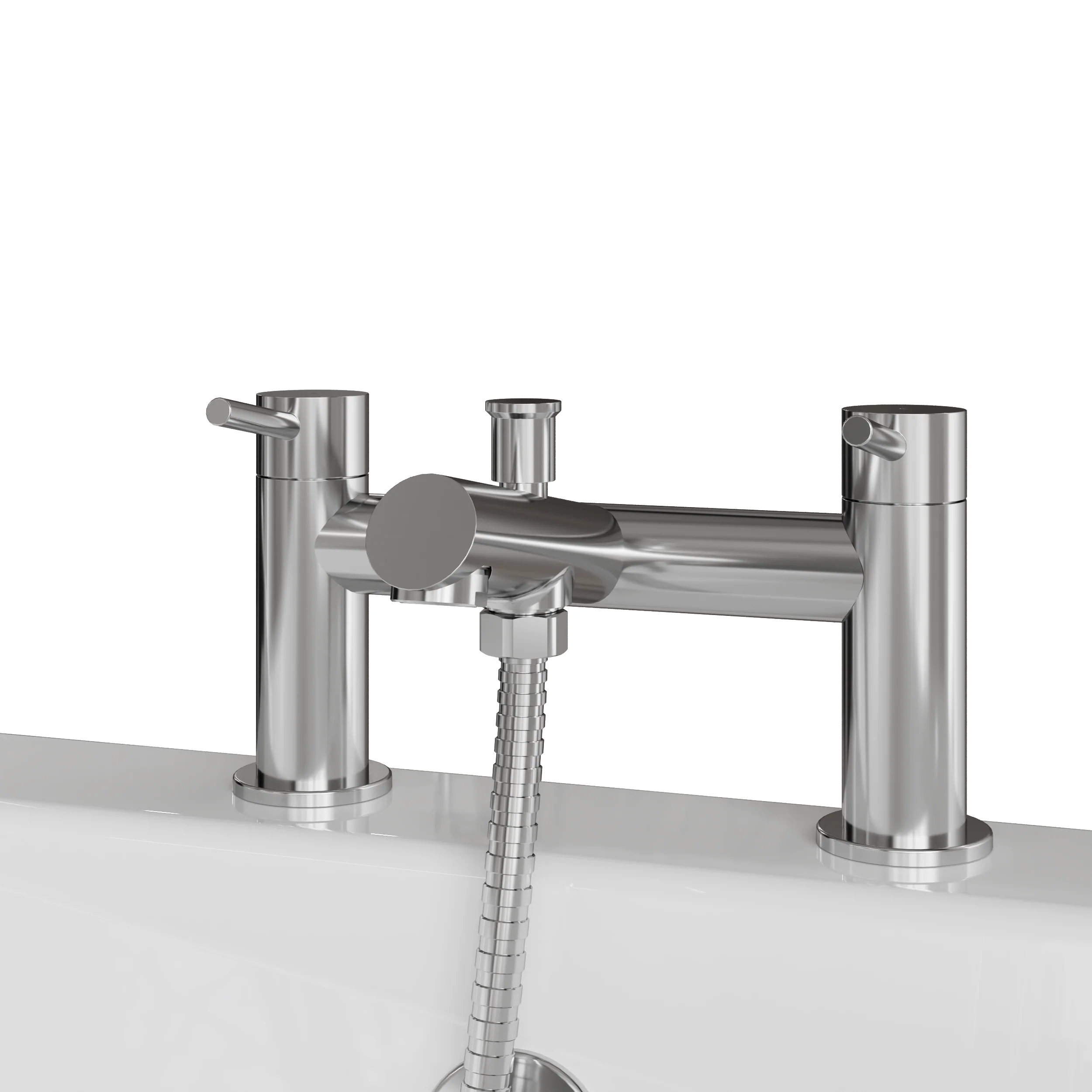

Brantley - Chrome Bath Shower Mixer Inc Handset

Introducing the Brantley - Chrome Bath Shower Mixer Inc Handset, designed for a luxurious bathing experience. With its sleek chrome finish and convenient handset, enjoy ultimate control and versatility in your shower. Complete with easy installation and high-quality materials, elevate your bathroom with the Brantley bath shower mixer.

Technical information

• Finish : Chrome
• Height :119mm
• Tap Spout Reach : 156mm
• Width : 228mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.2 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Hot and cold indicators
• Includes shower hose, handset and wall bracket
• Deck mounted
• Easy installation
• Gravity systems require minimum of 2 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.2 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
• Flow rates :-
• 0.5 Bar   29 Litres per minute
• 1.0 Bar   40 Litres per minute
• 2.0 bar   48 Litres per minute

NB:  All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice.
